Impedance-Meter RaceCar Tymp

Description

features

• Visual “Race Car” distraction and multimedia entertainment holds the child’s attention during the test
• Choose the Tympanometer or the Tympanometer/Audiometer combination
• Perform a tympanogram with ipsilateral reflex
• Quick, quiet internal printer
• Optional carrying case

specifications

Tympanometry mode
Probe frequency, intensity    226 Hz ± 1%, 85 dB SPL into 2 cm3, 1000 Hz
Pressure range    + 200 to – 400 daPa
Volume range    0,1 to 6,0 ml
Accuracy    ± 5% or ± 10 daPa
Test time    < 3 seconds

Reflex Mode
Test frequencies    500, 1000, 2000, 4000 Hz ± 2%
Test method    ipsilateral, contralateral (option)
Intensities ipsilateral    70 … 105 dB HL
Intensities contralateral    70 … 110 dB HL
Intensity setting    automatic or manual
Test program    Reflex test selectable
Memory    Storage of test results for both ears
Menu    For adapting to individual needs (Pump speed, accuracy, reflex mode etc.)
Probe    Lightweight adjustable hand-held probe with built-in control light and switch

General
Standard    IEC 601-1,IEC 645-5 class 2, medical directive 93/42/EEC,(CE 0124)
Printer    fast, virtually silent thermal printer
Print time    4 s / 12 s (Test results of both ears)
Display    Graphic LCD-Display, contrast adjustable
PC interface    USB
Power supply    Mains 100 … 240 V~, 50/60 Hz, 25 VA
Dimension and weight    W x D x H: 39 x 29 x 11 cm / 2.6 kg

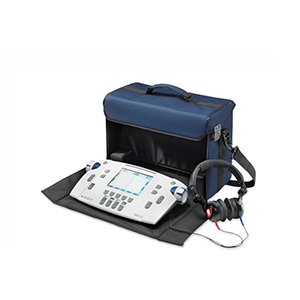

Optional carrying case
